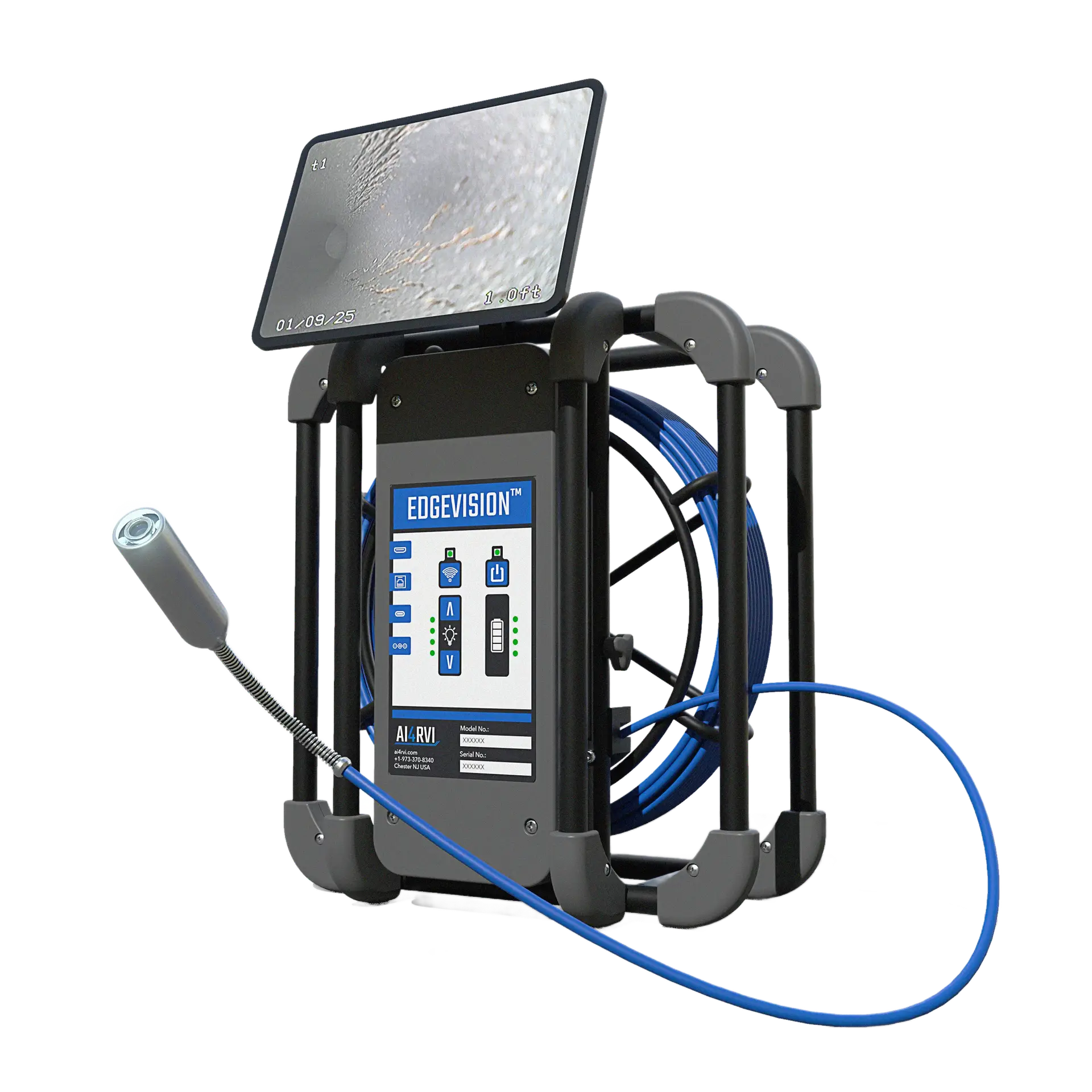

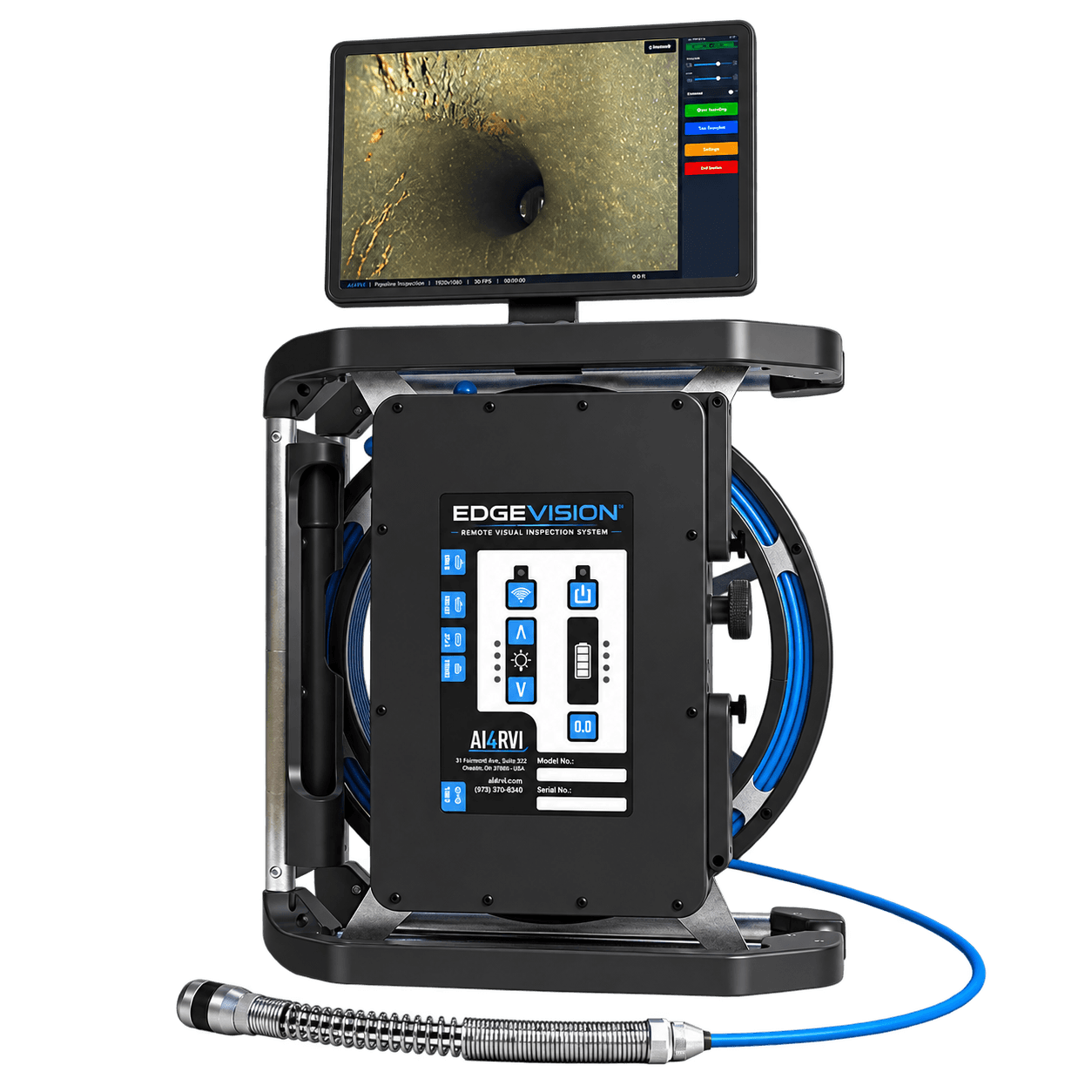

INTRODUCING
EDGEVISION™
The world's first AI-powered 1080p inspection system.
A fully integrated NVIDIA Jetson GPU powers advanced camera functions, including high-fidelity JPEG and MPEG recording. User-enabled AI streamlines on-site report generation and assisted defect recognition (ADR) using standardized anomaly codes.
30-meter (96′) long
push camera cable.
Tablet with digital touch-screen
controls. Wi-Fi for 2nd screen viewing.
25-mm (1”) Ø x 30 mm (1.2”) long
SS® detachable camera head with
LED lights & ultra-wide-angle lens.
Two each, 98-watt-hour
hot-swapable Li-Ion batteries
allows continuous field operation
Industrial design / compact size
(~1.25 cu. ft. / 0.042 cu. m.)
fits through a boiler manway.
Shipping/carry case included.
Secondary tablet optional.
Three tube centering
fixtures included.
Lightweight tubular welded stainless
steel construction. System weighs
under 20 lbs. (9 kg)
User-enabled AI functionality supports
efficient report generation and
automated anomaly detection (ADR),
with 12 standardized codes
selectable from a drop-down menu.
Field-Ready Hardware.
Industry-Leading Technology.
Powered by Nvidia
Generative AI
Generative Al report assembly and export capability.
Analytical AI
Optional Analytical Al for anomaly detection + standardized defect coding of tube ID condition.
WE'RE HIRING
Features and benefits
Proudly assembled in NJ, USA
Best-In-Class
Imaging system with 2 mega-pixel imager yielding 1,080 H lines of resolution allows improved probability-of-detection of tube ID defects. Customer-defined drop-down menu for tagging of anomalies.
Lights, Camera, Action
Long-life LED illumination enables superior imaging capability. Ultra-wide-angle lens is perfect for axial viewing of tube IDs.
Inputs and Outputs
HDMI output; email via Wi-Fi, USB for export of still images, video and reports. Inputs: HDMI, USB
